Innovative Materials

Dynic's composite technologies, which have repeatedly grown and merged, are creating new materials that meet the needs of ever-evolving industries.


High-performance moisture removal sheet “Moisture Getter”

Used not only for organic EL displays, organic EL lighting, organic solar cells, but also for general-purpose use components for medical devices, etc.

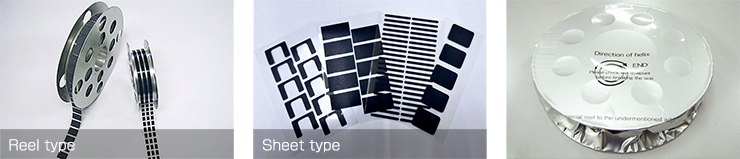

Moisture Getter is an ultrathin sheet-like desiccant manufactured in a sealed clean room environment. It has extremely high absorption capacity characteristics, meaning that it can be used for electronic devices that are extremely sensitive to moisture. Because one side is adhesive treated, it is easy to install on devices with a high degree of freedom.In addition, the paste-like desiccant, which can be applied with a syringe dispenser, has excellent freedom of fixed position and can contribute to further product miniaturization.

Absorption force, thickness, shape, size, etc. can be customized according to your request.

Moisture Getter Catalog

Carbon nanotube conductive coating

Conductive coating suitable for coating large areas

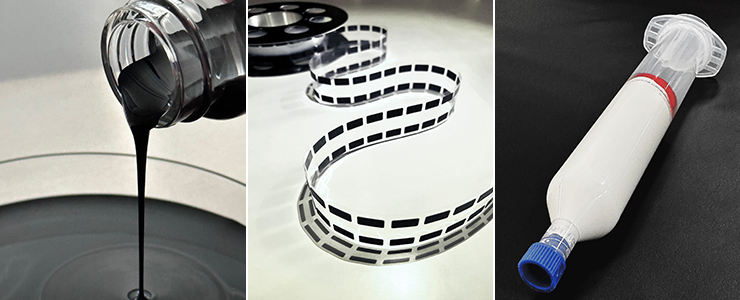

Carbon nanotubes are uniformly dispersed in water to form a coating with added dispersion and binder. They can be used for display materials, various electrode materials, sheet heaters, electromagnetic wave shielding materials, and anti-static
applications, etc.

It is also possible to provide processed (coated, impregnated) products for various substrates such as films.


■ Lineup

Type Coating appearance Surface resistivity Visible light transmittance range
Multilayer CNT Black ＞10^0Ω/□ ー
Single layer CNT Transparent ＞10^1Ω/□ 50% to 95%

Water-based conductive coating

By coating between the current collector and the active material layer, the internal resistance of the electrode is reduced.

Water-based conductive coatings can be used as conductive layers and conductive adhesives for secondary batteries and capacitors that require low resistance in products with high-purity graphite and carbon black dispersed in water, and they are being further adopted.

We can adjust the formulation according to your request, such as emphasizing high capacity or internal resistance, and customize the viscosity or non-volatile content, etc.

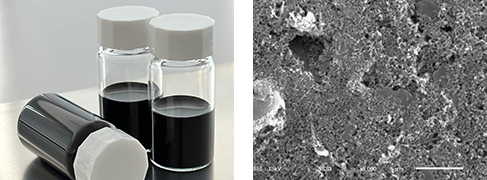

Electron micrograph after coating (5000x)
